UVIS FQ937N

Description
CH4 0.025 km-agt filter.

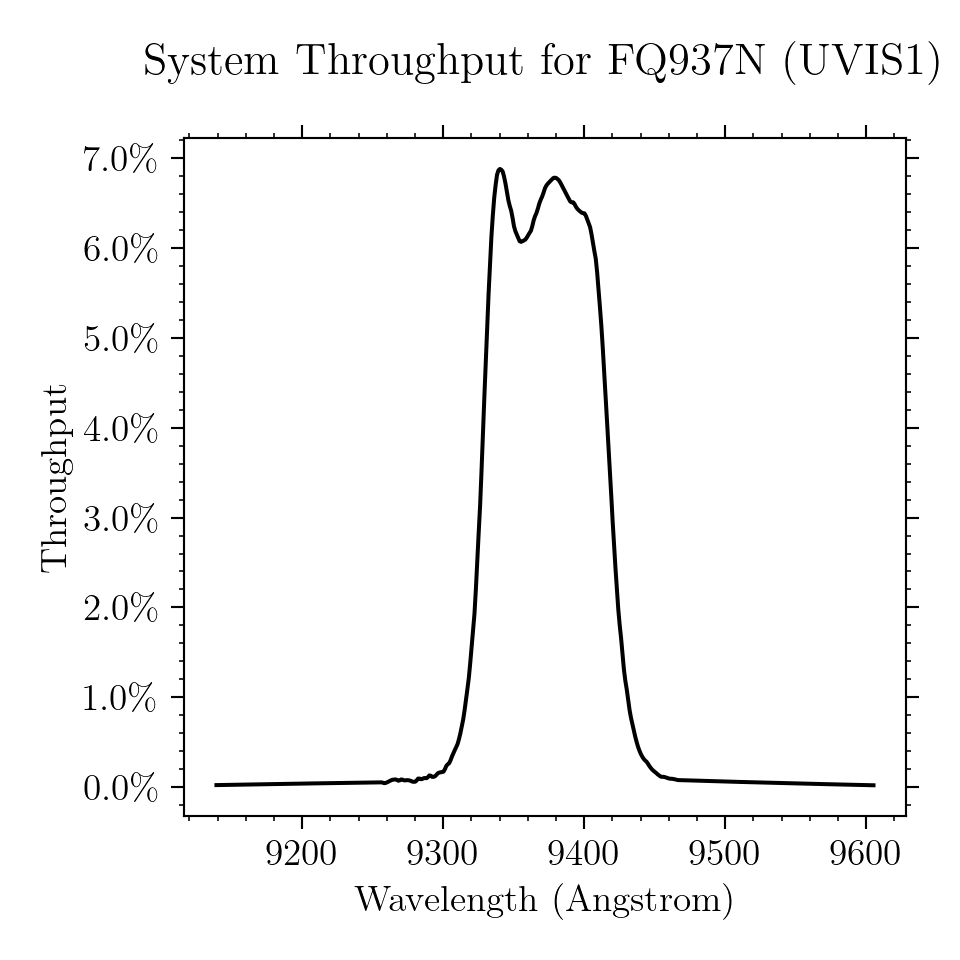

Figure A.184: Integrated system throughput for FQ937N.

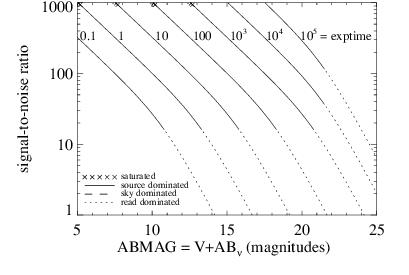

Figure A.185: Point source S/N vs. V+ABν for the FQ937N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

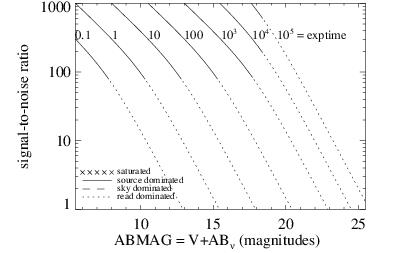

Figure A.186: Extended source S/N vs. V+ABν for the FQ937N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsecaperture.



Table A.1: Color corrections ABν to go from Johnson V magnitude to AB magnitude for WFC3 as a function of stellar effective temperature.










Teff










Mode

2500K

5000K

7500K

10000K

15000K

20000K

30000K

50000K

UVIS/F200LP

–2.22

0.45

0.48

0.40

0.08

–0.12

–0.40

–0.57

UVIS/F218W

7.21

7.82

2.95

1.51

0.09

–0.53

–1.22

–1.55

UVIS/F225W

6.07

7.22

2.84

1.51

0.12

–0.49

–1.15

–1.46

UVIS/F275W

7.30

5.30

2.27

1.35

0.10

–0.42

–0.96

–1.24

UVIS/F280N

3.29

4.49

2.50

1.44

0.13

–0.40

–0.90

–1.17

UVIS/F300X

5.96

4.05

1.98

1.26

0.10

–0.39

–0.91

–1.19

UVIS/F336W

4.98

2.71

1.31

1.00

0.10

–0.26

–0.64

–0.86

UVIS/F343N

4.74

2.62

1.24

0.97

0.11

–0.24

–0.60

–0.82

UVIS/F350LP

–2.64

0.07

0.18

0.18

0.09

0.04

–0.02

–0.07

UVIS/F373N

7.03

2.53

1.10

0.94

0.21

–0.09

–0.43

–0.65

UVIS/F390M

4.25

2.08

0.67

0.25

–0.20

–0.33

–0.48

–0.60

UVIS/F390W

3.80

1.63

0.59

0.26

–0.14

–0.29

–0.47

–0.60

UVIS/F395N

3.91

1.92

0.67

0.15

–0.27

–0.37

–0.49

–0.58

UVIS/F410M

2.96

1.16

0.29

–0.10

–0.32

–0.39

–0.46

–0.52

UVIS/F438W

2.28

0.86

0.18

–0.12

–0.28

–0.33

–0.39

–0.43

UVIS/F467M

1.74

0.34

0.02

–0.15

–0.22

–0.24

–0.26

–0.27

UVIS/F469N

1.64

0.33

0.03

–0.14

–0.21

–0.24

–0.26

–0.26

UVIS/F475W

1.23

0.44

0.09

–0.07

–0.17

–0.20

–0.24

–0.26

UVIS/F475X

0.61

0.35

0.12

–0.01

–0.12

–0.15

–0.19

–0.23

UVIS/F487N

1.47

0.29

0.20

0.28

0.06

–0.02

–0.11

–0.17

UVIS/F502N

2.32

0.32

0.02

–0.07

–0.11

–0.12

–0.14

–0.15

UVIS/FQ508N

1.07

0.32

0.01

–0.06

–0.08

–0.10

–0.11

–0.12

UVIS/F547M

0.08

0.03

0.02

0.01

0.01

0.01

0.01

0.02

UVIS/F555W

0.15

0.09

0.03

–0.01

–0.03

–0.04

–0.05

–0.06

UVIS/F600LP

–3.71

–0.42

0.09

0.34

0.47

0.52

0.57

0.60

UVIS/F606W

–0.83

–0.11

0.04

0.10

0.12

0.12

0.13

0.13

UVIS/F621M

–1.23

–0.26

0.03

0.16

0.22

0.25

0.27

0.28

UVIS/F625W

–1.17

–0.25

0.04

0.16

0.22

0.24

0.26

0.27

UVIS/F631N

–0.33

–0.28

0.03

0.17

0.24

0.27

0.30

0.31

UVIS/F645N

–2.20

–0.29

0.04

0.20

0.28

0.31

0.35

0.35

UVIS/F656N

–1.99

–0.26

0.36

0.63

0.56

0.54

0.52

0.45

UVIS/F657N

–2.31

–0.31

0.14

0.37

0.39

0.41

0.42

0.41

UVIS/F658N

–2.04

–0.31

0.18

0.42

0.42

0.43

0.44

0.41

UVIS/F665N

–1.30

–0.35

0.06

0.26

0.34

0.38

0.42

0.42

UVIS/F673N

–0.69

–0.37

0.04

0.24

0.35

0.39

0.44

0.45

UVIS/F680N

–1.61

–0.38

0.05

0.26

0.38

0.42

0.47

0.48

UVIS/F689M

–1.69

–0.37

0.06

0.28

0.39

0.43

0.47

0.48

UVIS/F763M

–3.09

–0.45

0.09

0.37

0.53

0.59

0.65

0.69

UVIS/F775W

–3.60

–0.45

0.09

0.38

0.54

0.59

0.65

0.70

UVIS/F814W

–4.14

–0.48

0.12

0.43

0.60

0.67

0.74

0.79

UVIS/F845M

–4.56

–0.51

0.16

0.51

0.70

0.77

0.84

0.91

UVIS/F850LP

–5.03

–0.56

0.21

0.56

0.79

0.89

0.98

1.06

UVIS/F953N

–5.52

–0.59

0.27

0.68

0.91

1.00

1.10

1.16

UVIS/FQ232N

2.15

4.54

2.68

1.53

0.20

–0.43

–1.12

–1.46

UVIS/FQ243N

2.84

5.10

2.76

1.52

0.18

–0.44

–1.11

–1.40

UVIS/FQ378N

4.90

2.32

0.86

0.61

0.01

–0.20

–0.44

–0.62

UVIS/FQ387N

6.34

2.42

0.61

0.25

–0.21

–0.34

–0.49

–0.61

UVIS/FQ422M

5.05

1.17

0.18

–0.22

–0.36

–0.41

–0.46

–0.48

UVIS/FQ436N

2.64

0.84

0.23

0.08

–0.16

–0.24

–0.31

–0.39

UVIS/FQ437N

2.59

0.83

0.18

0.00

–0.21

–0.28

–0.34

–0.40

UVIS/FQ492N

0.91

0.27

0.04

–0.02

–0.10

–0.13

–0.16

–0.17

UVIS/FQ575N

–0.58

–0.18

0.01

0.07

0.10

0.11

0.13

0.13

UVIS/FQ619N

0.72

–0.25

0.03

0.15

0.22

0.24

0.27

0.27

UVIS/FQ634N

–0.96

–0.28

0.03

0.18

0.26

0.29

0.32

0.32

UVIS/FQ672N

–0.77

–0.35

0.04

0.23

0.34

0.38

0.42

0.44

UVIS/FQ674N

–0.39

–0.37

0.04

0.24

0.35

0.39

0.43

0.44

UVIS/FQ727N

–2.81

–0.41

0.07

0.32

0.46

0.52

0.57

0.60

UVIS/FQ750N

–3.06

–0.44

0.08

0.36

0.51

0.57

0.63

0.66

UVIS/FQ889N

–4.98

–0.55

0.20

0.57

0.78

0.86

0.95

1.01

UVIS/FQ906N

–5.15

–0.56

0.21

0.57

0.79

0.88

0.98

1.05

UVIS/FQ924N

–4.89

–0.57

0.26

0.66

0.87

0.95

1.04

1.10

UVIS/FQ937N

–5.19

–0.58

0.19

0.48

0.77

0.89

1.01

1.11

IR/F098M

–5.40

–0.60

0.25

0.60

0.88

1.00

1.12

1.21

IR/F105W

–5.68

–0.62

0.31

0.69

0.98

1.11

1.24

1.34

IR/F110W

–5.77

–0.64

0.39

0.80

1.12

1.25

1.39

1.49

IR/F125W

–5.91

–0.67

0.48

0.94

1.28

1.43

1.58

1.69

IR/F126N

–5.99

–0.67

0.49

0.96

1.31

1.46

1.61

1.72

IR/F127M

–6.04

–0.67

0.52

1.01

1.35

1.49

1.65

1.75

IR/F128N

–6.08

–0.67

0.59

1.11

1.41

1.55

1.69

1.78

IR/F130N

–6.13

–0.68

0.53

1.02

1.37

1.52

1.68

1.79

IR/F132N

–6.04

–0.67

0.54

1.03

1.39

1.55

1.71

1.82

IR/F139M

–5.64

–0.69

0.60

1.11

1.49

1.64

1.81

1.92

IR/F140W

–5.89

–0.69

0.61

1.12

1.49

1.64

1.80

1.92

IR/F153M

–6.03

–0.71

0.73

1.29

1.69

1.85

2.02

2.14

IR/F160W

–6.05

–0.70

0.74

1.30

1.69

1.85

2.02

2.15

IR/F164N

–6.39

–0.70

0.84

1.42

1.82

1.99

2.16

2.28

IR/F167N

–6.32

–0.69

0.84

1.41

1.83

2.00

2.18

2.31


Table A.2: Color corrections ABν to go from Johnson V magnitude to AB magnitude for WFC3 as a function of age in an instantaneous burst population.








Age






Mode

10 Gyr

1 Gyr

100 Myr

10 Myr

1 Myr

UVIS/F200LP

0.38

0.48

0.29

0.02

–0.48

UVIS/F218W

6.11

3.89

1.06

0.15

–1.22

UVIS/F225W

5.83

3.76

1.03

0.16

–1.15

UVIS/F275W

4.75

3.14

0.93

0.19

–0.97

UVIS/F280N

4.32

3.03

0.89

0.21

–0.92

UVIS/F300X

3.95

2.80

0.89

0.20

–0.94

UVIS/F336W

2.69

1.98

0.77

0.27

–0.67

UVIS/F343N

2.55

1.89

0.76

0.28

–0.63

UVIS/F350LP

–0.09

0.04

0.06

–0.06

–0.04

UVIS/F373N

2.28

1.57

0.66

0.34

–0.49

UVIS/F390M

2.03

1.12

0.22

0.14

–0.50

UVIS/F390W

1.63

1.00

0.27

0.15

–0.50

UVIS/F395N

1.88

1.03

0.14

0.11

–0.49

UVIS/F410M

1.23

0.64

0.02

0.02

–0.47

UVIS/F438W

0.90

0.48

0.01

0.02

–0.39

UVIS/F467M

0.44

0.22

–0.03

–0.01

–0.26

UVIS/F469N

0.46

0.23

–0.02

–0.01

–0.25

UVIS/F475W

0.48

0.27

0.02

0.04

–0.23

UVIS/F475X

0.38

0.24

0.03

0.03

–0.20

UVIS/F487N

0.36

0.27

0.12

0.10

–0.14

UVIS/F502N

0.33

0.17

0.02

0.08

–0.12

UVIS/F547M

0.04

0.03

0.03

0.03

0.02

UVIS/F555W

0.11

0.07

0.02

0.01

–0.05

UVIS/F600LP

–0.72

–0.38

–0.04

–0.27

0.54

UVIS/F606W

–0.17

–0.08

0.01

–0.04

0.13

UVIS/F621M

–0.33

–0.18

0.00

–0.10

0.26

UVIS/F625W

–0.33

–0.18

–0.00

–0.10

0.26

UVIS/F631N

–0.34

–0.19

0.00

–0.10

0.29

UVIS/F645N

–0.43

–0.23

–0.02

–0.15

0.33

UVIS/F656N

–0.45

–0.18

0.06

–0.16

0.37

UVIS/F657N

–0.47

–0.22

0.00

–0.18

0.37

UVIS/F658N

–0.47

–0.22

0.00

–0.18

0.37

UVIS/F665N

–0.48

–0.26

–0.03

–0.18

0.39

UVIS/F673N

–0.49

–0.28

–0.02

–0.15

0.42

UVIS/F680N

–0.54

–0.30

–0.02

–0.17

0.45

UVIS/F689M

–0.53

–0.29

–0.02

–0.18

0.45

UVIS/F763M

–0.77

–0.40

–0.05

–0.32

0.64

UVIS/F775W

–0.78

–0.41

–0.05

–0.31

0.64

UVIS/F814W

–0.89

–0.47

–0.07

–0.36

0.71

UVIS/F845M

–1.00

–0.53

–0.09

–0.41

0.82

UVIS/F850LP

–1.18

–0.65

–0.13

–0.47

0.96

UVIS/F953N

–1.27

–0.71

–0.12

–0.50

1.06

UVIS/FQ232N

4.48

3.43

1.03

0.17

–1.14

UVIS/FQ243N

4.88

3.62

0.98

0.14

–1.10

UVIS/FQ378N

2.24

1.37

0.42

0.22

–0.51

UVIS/FQ387N

2.27

1.16

0.23

0.14

–0.51

UVIS/FQ422M

1.16

0.55

–0.03

0.01

–0.44

UVIS/FQ436N

0.86

0.49

0.04

0.05

–0.36

UVIS/FQ437N

0.86

0.46

0.00

0.03

–0.37

UVIS/FQ492N

0.31

0.17

0.01

0.05

–0.15

UVIS/FQ508N

0.31

0.17

0.04

0.12

–0.09

UVIS/FQ575N

–0.18

–0.08

0.00

–0.06

0.12

UVIS/FQ619N

–0.28

–0.16

0.02

–0.06

0.26

UVIS/FQ634N

–0.37

–0.21

–0.01

–0.12

0.30

UVIS/FQ672N

–0.47

–0.27

–0.02

–0.16

0.40

UVIS/FQ674N

–0.48

–0.27

–0.02

–0.16

0.41

UVIS/FQ727N

–0.65

–0.34

–0.01

–0.26

0.56

UVIS/FQ750N

–0.81

–0.43

–0.07

–0.33

0.61

UVIS/FQ889N

–1.12

–0.61

–0.14

–0.46

0.91

UVIS/FQ906N

–1.22

–0.68

–0.15

–0.49

0.94

UVIS/FQ924N

–1.21

–0.65

–0.12

–0.48

1.00

UVIS/FQ937N

–1.16

–0.65

–0.11

–0.47

1.00

IR/F098M

–1.35

–0.74

–0.15

–0.51

1.10

IR/F105W

–1.39

–0.74

–0.14

–0.54

1.22

IR/F110W

–1.38

–0.70

–0.11

–0.57

1.36

IR/F125W

–1.39

–0.67

–0.08

–0.60

1.57

IR/F126N

–1.37

–0.64

–0.07

–0.62

1.60

IR/F127M

–1.38

–0.64

–0.07

–0.62

1.62

IR/F128N

–1.39

–0.64

–0.07

–0.63

1.64

IR/F130N

–1.40

–0.65

–0.07

–0.63

1.66

IR/F132N

–1.40

–0.64

–0.07

–0.62

1.69

IR/F139M

–1.37

–0.62

–0.05

–0.60

1.78

IR/F140W

–1.41

–0.65

–0.06

–0.64

1.77

IR/F153M

–1.49

–0.69

–0.07

–0.70

1.98

IR/F160W

–1.49

–0.68

–0.07

–0.70

1.97

IR/F164N

–1.59

–0.75

–0.11

–0.79

2.10

IR/F167N

–1.58

–0.74

–0.10

–0.78

2.13


Table A.3: Color corrections ABν to go from Johnson V magnitude to AB magnitude for WFC3 as a function of age in a population with constant star formation.








Age






Mode

10 Gyr

1 Gyr

100 Myr

10 Myr

1 Myr

UVIS/F200LP

0.31

0.24

0.03

–0.15

–0.48

UVIS/F218W

1.39

0.79

0.08

–0.48

–1.22

UVIS/F225W

1.39

0.79

0.09

–0.44

–1.15

UVIS/F275W

1.35

0.78

0.12

–0.36

–0.97

UVIS/F280N

1.34

0.77

0.14

–0.33

–0.92

UVIS/F300X

1.31

0.76

0.13

–0.34

–0.93

UVIS/F336W

1.15

0.71

0.19

–0.21

–0.66

UVIS/F343N

1.13

0.71

0.20

–0.18

–0.62

UVIS/F350LP

0.00

0.03

–0.01

–0.01

–0.04

UVIS/F373N

1.04

0.66

0.24

–0.11

–0.49

UVIS/F390M

0.67

0.28

–0.00

–0.25

–0.50

UVIS/F390W

0.64

0.30

0.03

–0.23

–0.49

UVIS/F395N

0.60

0.21

–0.04

–0.27

–0.49

UVIS/F410M

0.37

0.07

–0.11

–0.30

–0.47

UVIS/F438W

0.29

0.05

–0.09

–0.25

–0.39

UVIS/F467M

0.14

–0.00

–0.08

–0.18

–0.26

UVIS/F469N

0.15

0.00

–0.07

–0.17

–0.25

UVIS/F475W

0.18

0.04

–0.03

–0.14

–0.23

UVIS/F475X

0.16

0.05

–0.02

–0.11

–0.20

UVIS/F487N

0.21

0.14

0.05

–0.05

–0.14

UVIS/F502N

0.13

0.04

0.01

–0.06

–0.13

UVIS/F547M

0.03

0.03

0.03

0.03

0.02

UVIS/F555W

0.05

0.02

–0.00

–0.03

–0.05

UVIS/F600LP

–0.36

–0.13

–0.05

0.22

0.54

UVIS/F606W

–0.06

–0.00

0.01

0.07

0.13

UVIS/F621M

–0.14

–0.03

0.01

0.13

0.26

UVIS/F625W

–0.14

–0.03

0.01

0.12

0.26

UVIS/F631N

–0.15

–0.03

0.02

0.14

0.29

UVIS/F645N

–0.19

–0.05

–0.01

0.15

0.33

UVIS/F656N

–0.16

0.01

0.02

0.19

0.37

UVIS/F657N

–0.20

–0.04

–0.01

0.16

0.37

UVIS/F658N

–0.20

–0.04

–0.02

0.16

0.37

UVIS/F665N

–0.23

–0.07

–0.02

0.16

0.39

UVIS/F673N

–0.23

–0.06

0.01

0.19

0.42

UVIS/F680N

–0.26

–0.07

0.00

0.20

0.45

UVIS/F689M

–0.25

–0.07

–0.01

0.20

0.45

UVIS/F763M

–0.39

–0.13

–0.06

0.25

0.64

UVIS/F775W

–0.39

–0.14

–0.06

0.25

0.64

UVIS/F814W

–0.46

–0.18

–0.08

0.26

0.71

UVIS/F845M

–0.53

–0.22

–0.12

0.28

0.82

UVIS/F850LP

–0.66

–0.31

–0.14

0.30

0.96

UVIS/F953N

–0.72

–0.34

–0.15

0.32

1.06

UVIS/FQ232N

1.37

0.79

0.10

–0.43

–1.14

UVIS/FQ243N

1.37

0.78

0.08

–0.43

–1.10

UVIS/FQ378N

0.85

0.46

0.10

–0.20

–0.50

UVIS/FQ387N

0.70

0.29

0.01

–0.25

–0.51

UVIS/FQ422M

0.32

0.02

–0.12

–0.30

–0.44

UVIS/FQ436N

0.31

0.08

–0.06

–0.22

–0.37

UVIS/FQ437N

0.28

0.05

–0.09

–0.24

–0.38

UVIS/FQ492N

0.12

0.03

–0.01

–0.09

–0.15

UVIS/FQ508N

0.14

0.06

0.04

–0.03

–0.09

UVIS/FQ575N

–0.07

–0.01

–0.00

0.06

0.13

UVIS/FQ619N

–0.12

–0.01

0.03

0.14

0.26

UVIS/FQ634N

–0.17

–0.04

0.00

0.14

0.30

UVIS/FQ672N

–0.22

–0.06

–0.00

0.18

0.40

UVIS/FQ674N

–0.22

–0.06

0.00

0.19

0.41

UVIS/FQ727N

–0.31

–0.09

–0.03

0.23

0.56

UVIS/FQ750N

–0.42

–0.16

–0.08

0.23

0.61

UVIS/FQ889N

–0.62

–0.28

–0.15

0.28

0.91

UVIS/FQ906N

–0.69

–0.34

–0.17

0.27

0.94

UVIS/FQ924N

–0.67

–0.30

–0.14

0.31

1.00

UVIS/FQ937N

–0.65

–0.30

–0.14

0.31

0.99

IR/F098M

–0.76

–0.37

–0.16

0.33

1.10

IR/F105W

–0.78

–0.37

–0.17

0.36

1.22

IR/F110W

–0.76

–0.33

–0.17

0.39

1.36

IR/F125W

–0.74

–0.30

–0.17

0.44

1.57

IR/F126N

–0.73

–0.29

–0.18

0.45

1.60

IR/F127M

–0.73

–0.29

–0.18

0.45

1.62

IR/F128N

–0.74

–0.29

–0.18

0.45

1.64

IR/F130N

–0.74

–0.29

–0.18

0.46

1.66

IR/F132N

–0.74

–0.28

–0.17

0.47

1.69

IR/F139M

–0.71

–0.25

–0.14

0.49

1.78

IR/F140W

–0.75

–0.28

–0.17

0.47

1.77

IR/F153M

–0.81

–0.32

–0.20

0.47

1.97

IR/F160W

–0.80

–0.32

–0.21

0.46

1.97

IR/F164N

–0.88

–0.39

–0.27

0.43

2.10

IR/F167N

–0.88

–0.38

–0.26

0.44

2.13
