UVIS F410M
Description
Strömgren v filter.

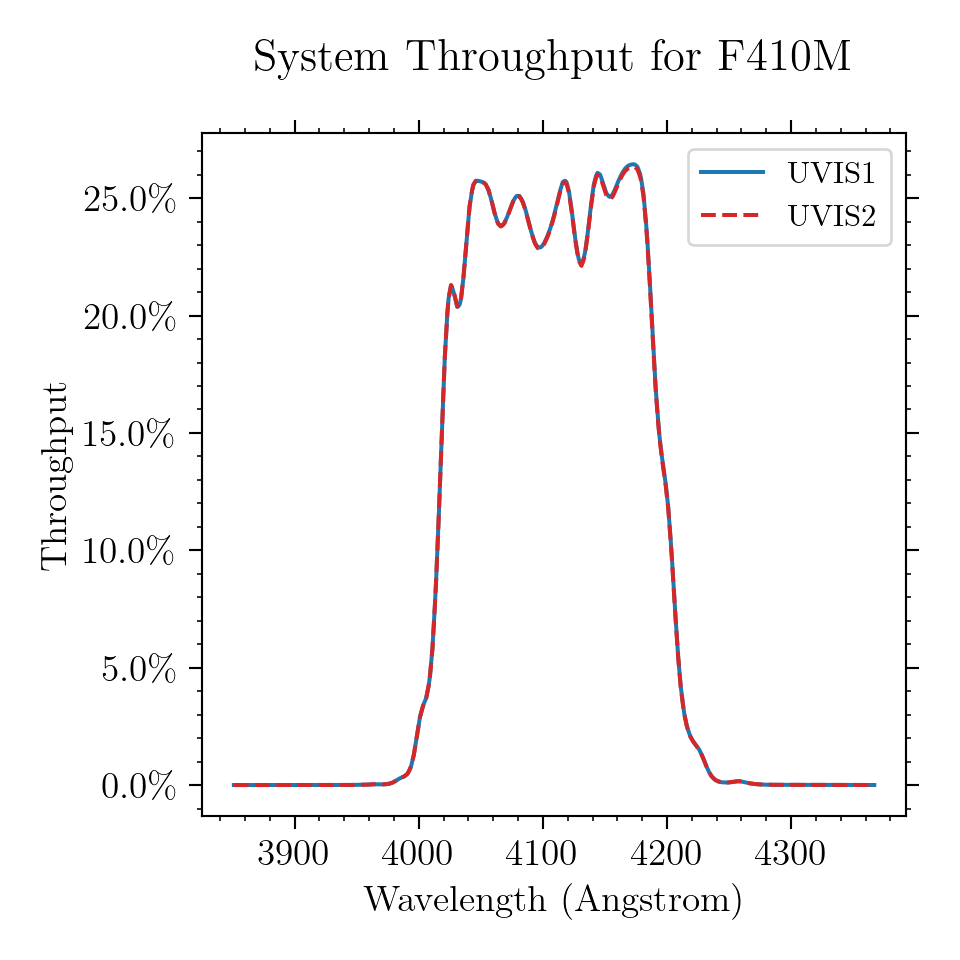

Figure A.40: Integrated system throughput for F410M.

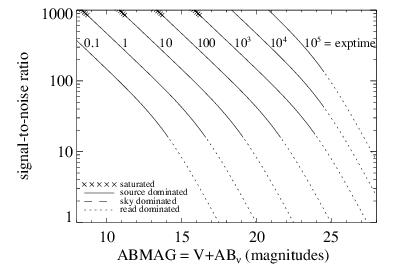

Figure A.41: Point source S/N vs. V+ABν for the F410M filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

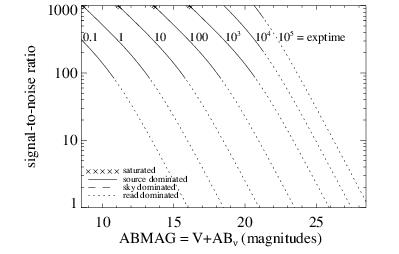

Figure A.42: Extended source S/N vs. V+ABν for the F410M filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
