UVIS FQ378N
Description
z ([O II] 3726) filter.

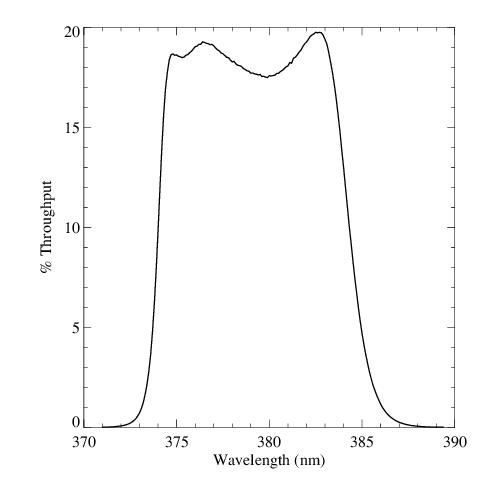

Figure A.133: Integrated system throughput for FQ378N.

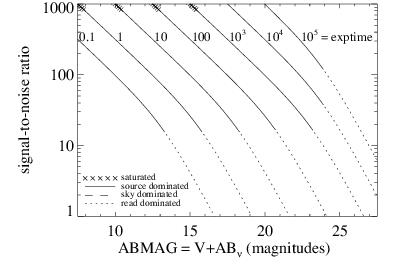

Figure A.134: Point source S/N vs. V+ABν for the FQ378N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

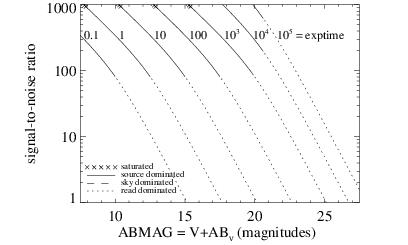

Figure A.135: Extended source S/N vs. V+ABν for the FQ378N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
