UVIS FQ508N
Description
z ([O III] 5007) filter.

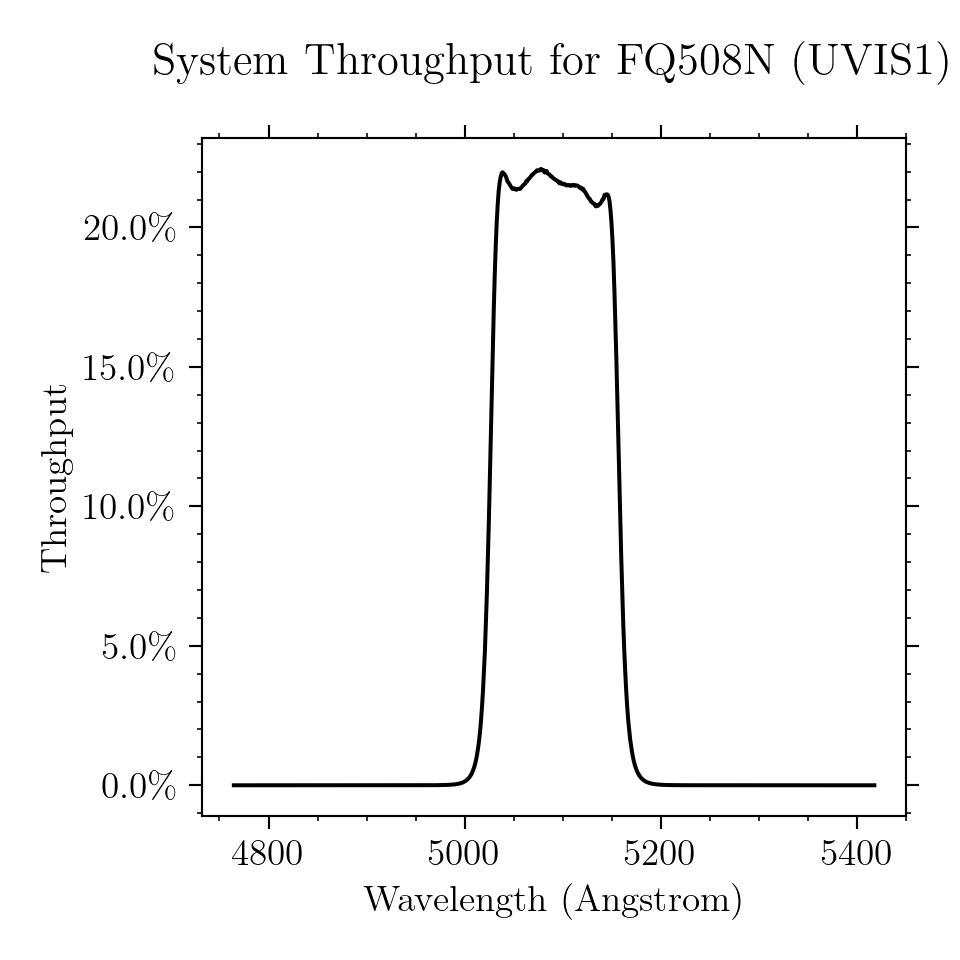

Figure A.151: Integrated system throughput for FQ508N.

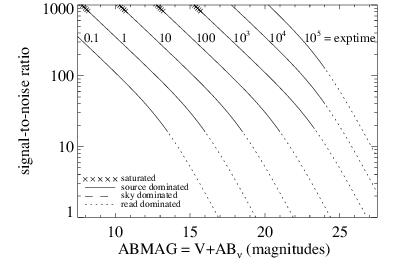

Figure A.152: Point source S/N vs. V+ABν for the FQ508N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

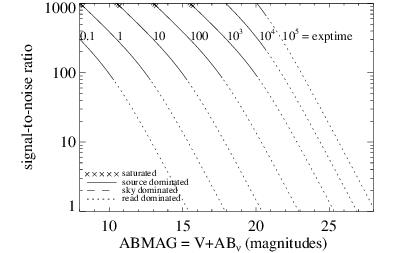

Figure A.153: Extended source S/N vs. V+ABν for the FQ508N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
