UVIS FQ634N
Description
6194 continuum filter.

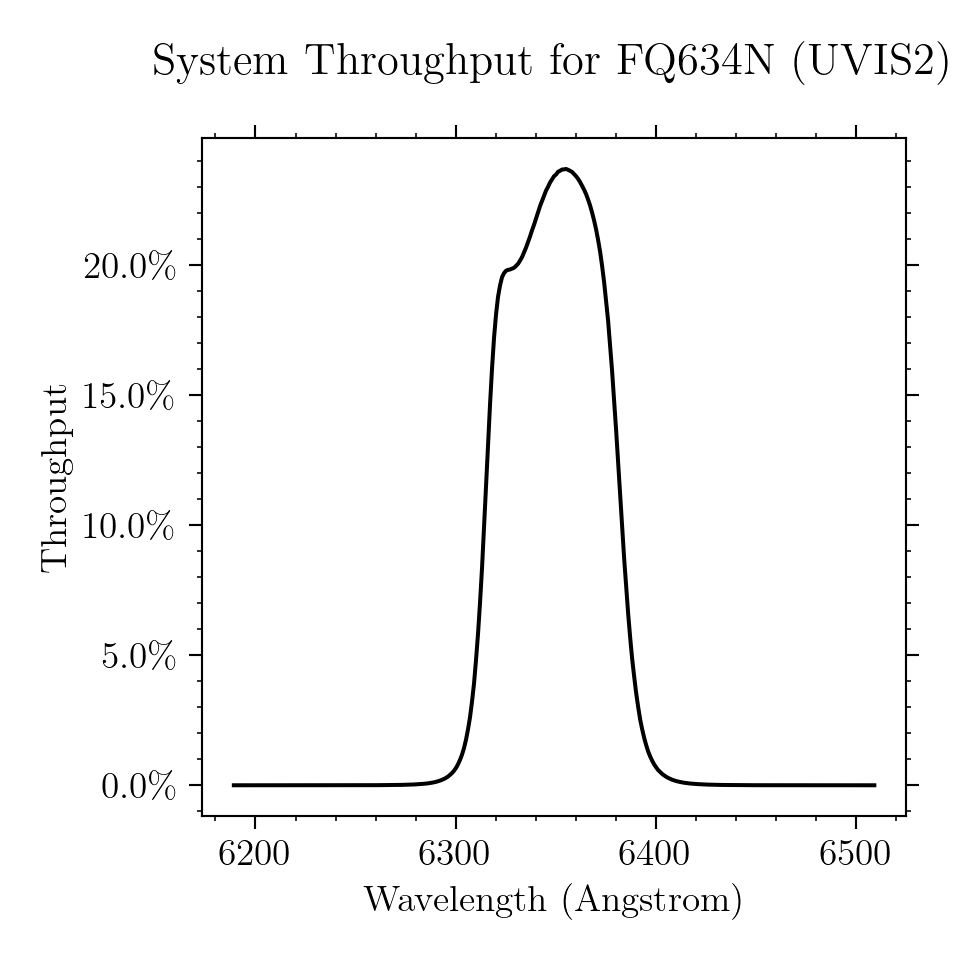

Figure A.160: Integrated system throughput for FQ634N.

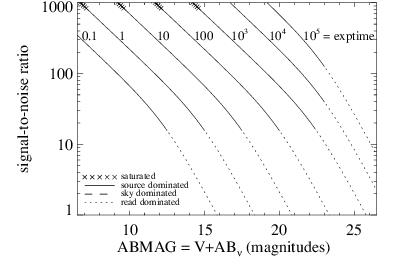

Figure A.161: Point source S/N vs. V+ABν for the FQ634N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

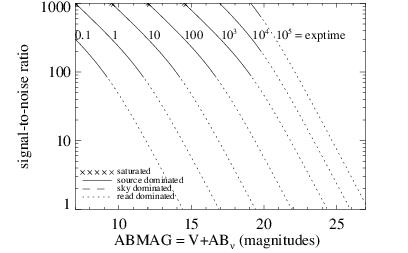

Figure A.162: Extended source S/N vs. V+ABν for the FQ634N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
