UVIS F343N
Description
[Ne V] 3426 filter.

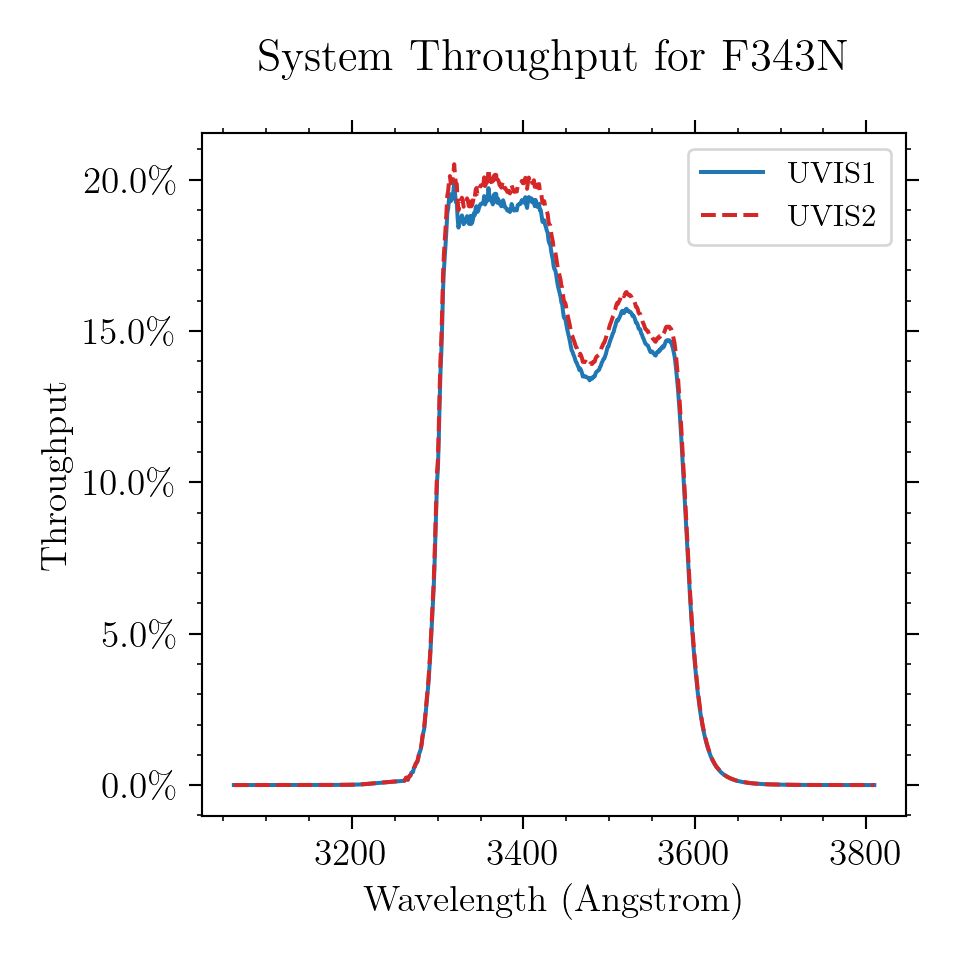

Figure A.22: Integrated system throughput for F343N.

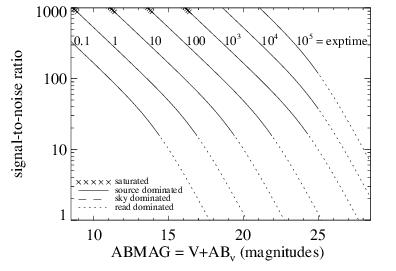

Figure A.23: Point source S/N vs. V+ABν for the F343N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

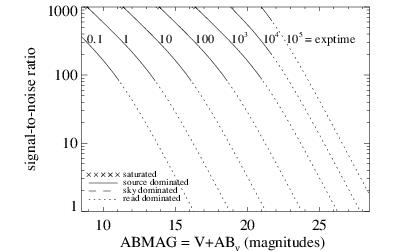

Figure A.24: Extended source S/N vs. V+ABν for the F343N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
