UVIS F631N
Description
[O I] 6300 filter.

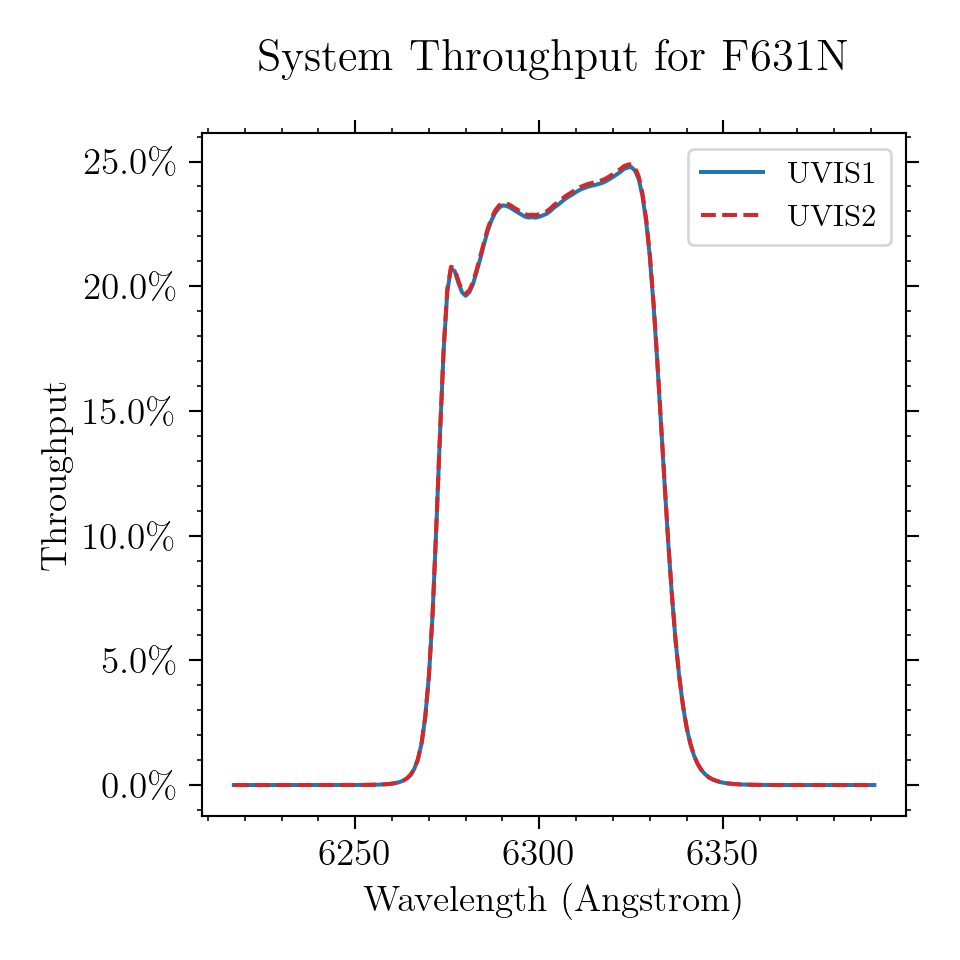

Figure A.82: Integrated system throughput for F631N.

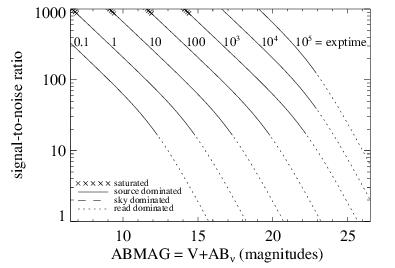

Figure A.83: Point source S/N vs. V+ABν for the F631N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

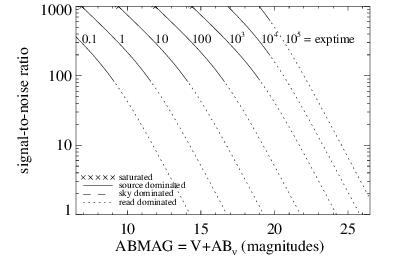

Figure A.84: Extended source S/N vs. V+ABν for the F631N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
