UVIS FQ906N
Description
CH4 2.5 km-agt filter.

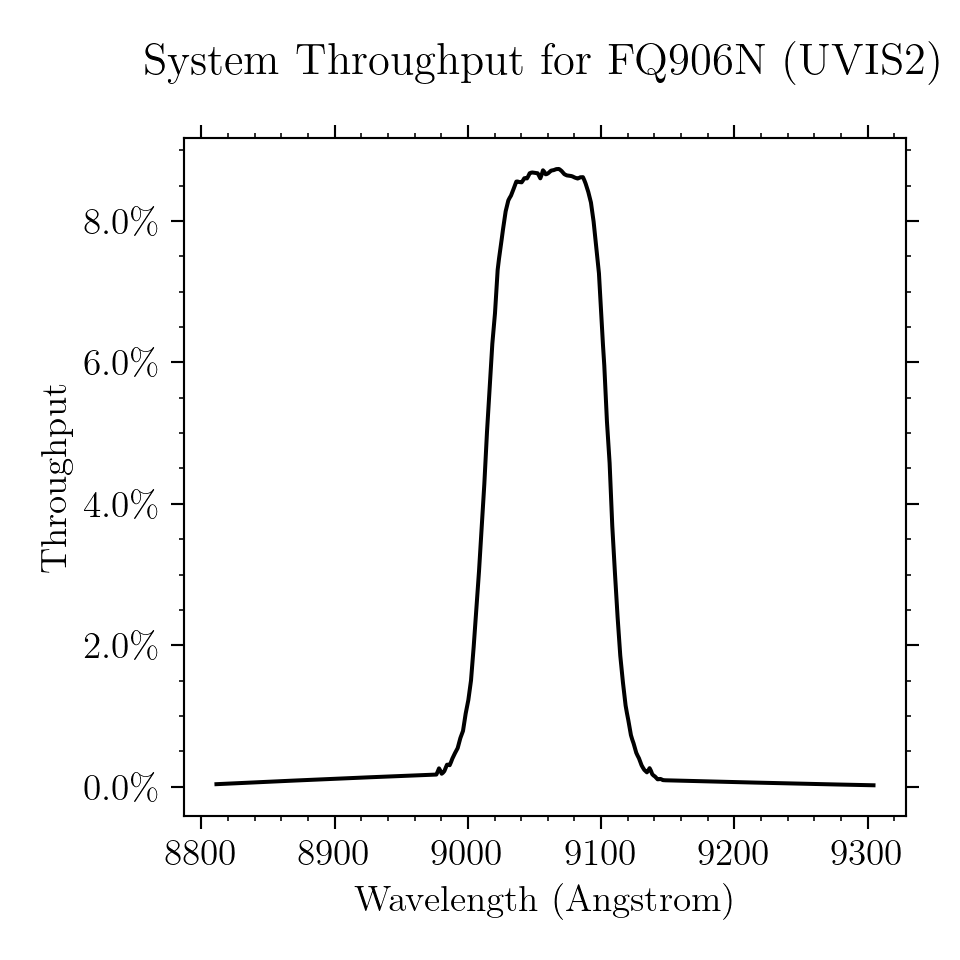

Figure A.178: Integrated system throughput for FQ906N.

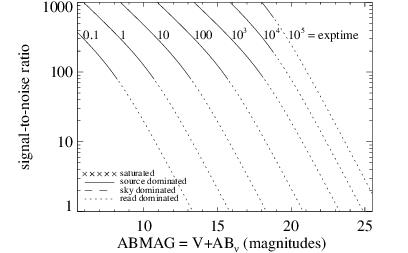

Figure A.179: Point source S/N vs. V+ABν for the FQ906N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

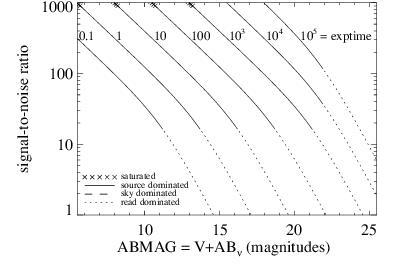

Figure A.180: Extended source S/N vs. V+ABν for the FQ906N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
