UVIS FQ243N
Description
[Ne IV] 2425 filter.

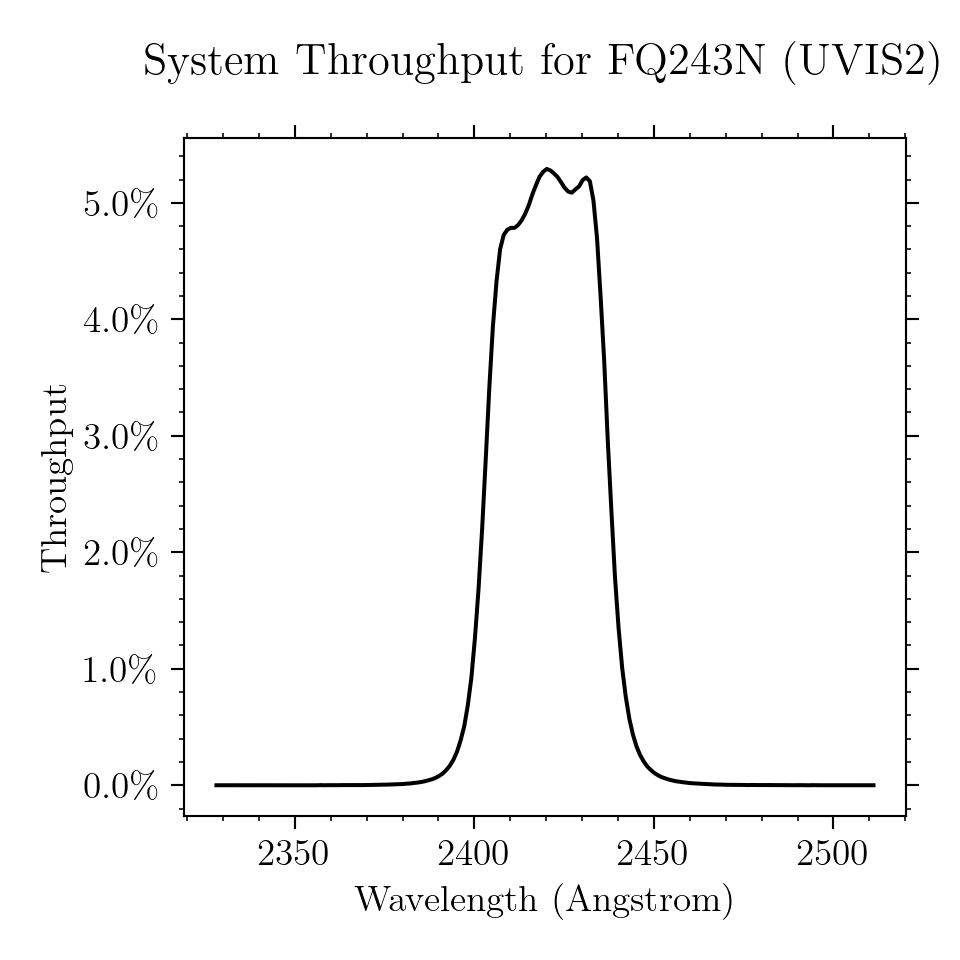

Figure A.130: Integrated system throughput for FQ243N.

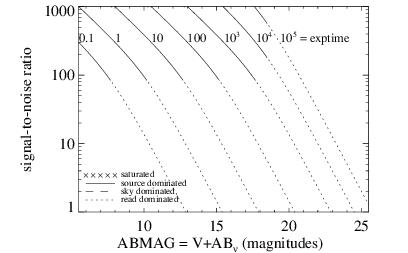

Figure A.131: Point source S/N vs. V+ABν for the FQ243N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

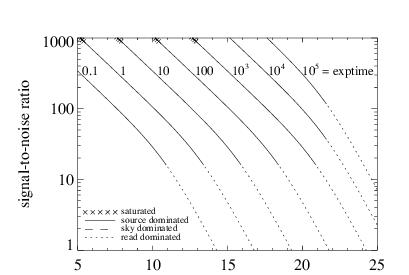

Figure A.132: Extended source S/N vs. V+ABν for the FQ243N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
