UVIS F606W
Description
WFPC2 Wide V filter.

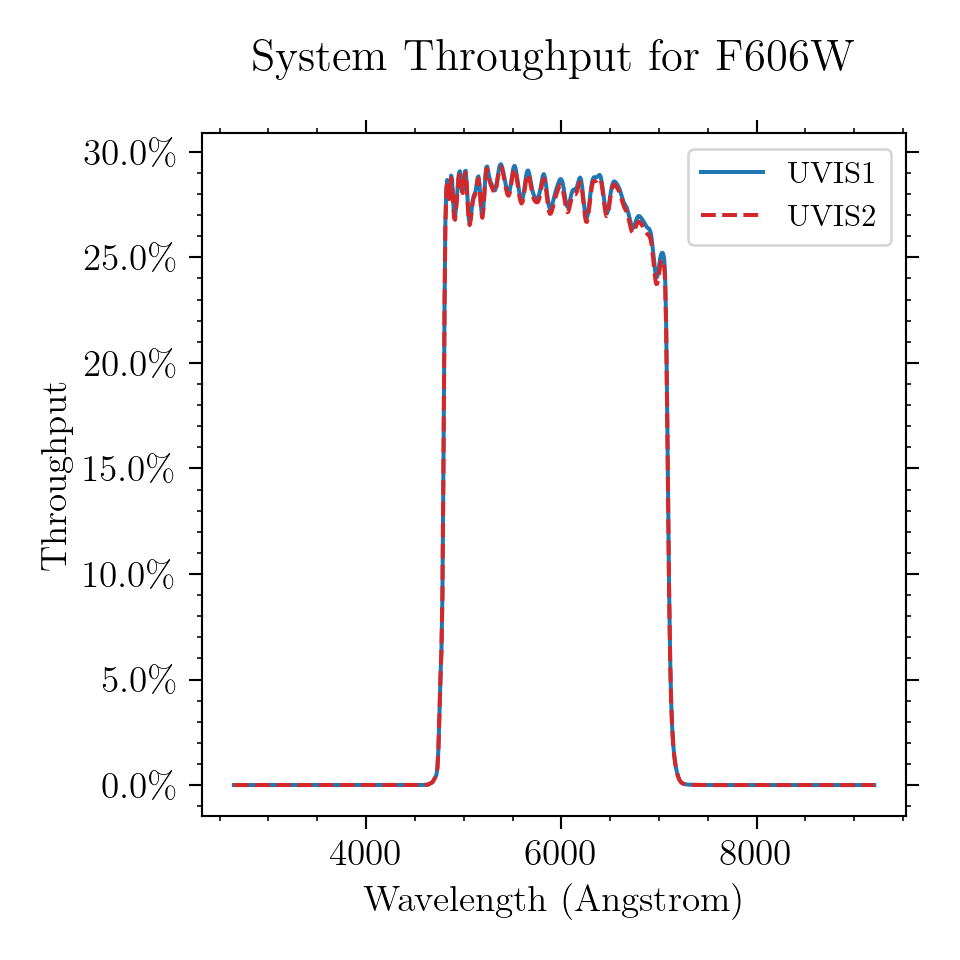

Figure A.73: Integrated system throughput for F606W.

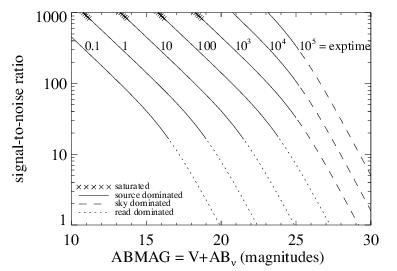

Figure A.74: Point source S/N vs. V+ABν for the F606W filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

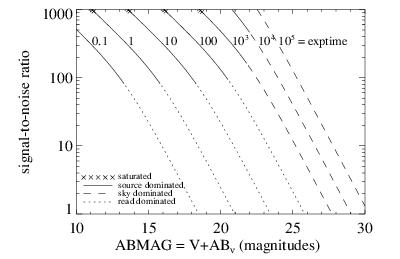

Figure A.75: Extended source S/N vs. V+ABν for the F606W filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
