UVIS F469N
Description
He II 4686 filter.

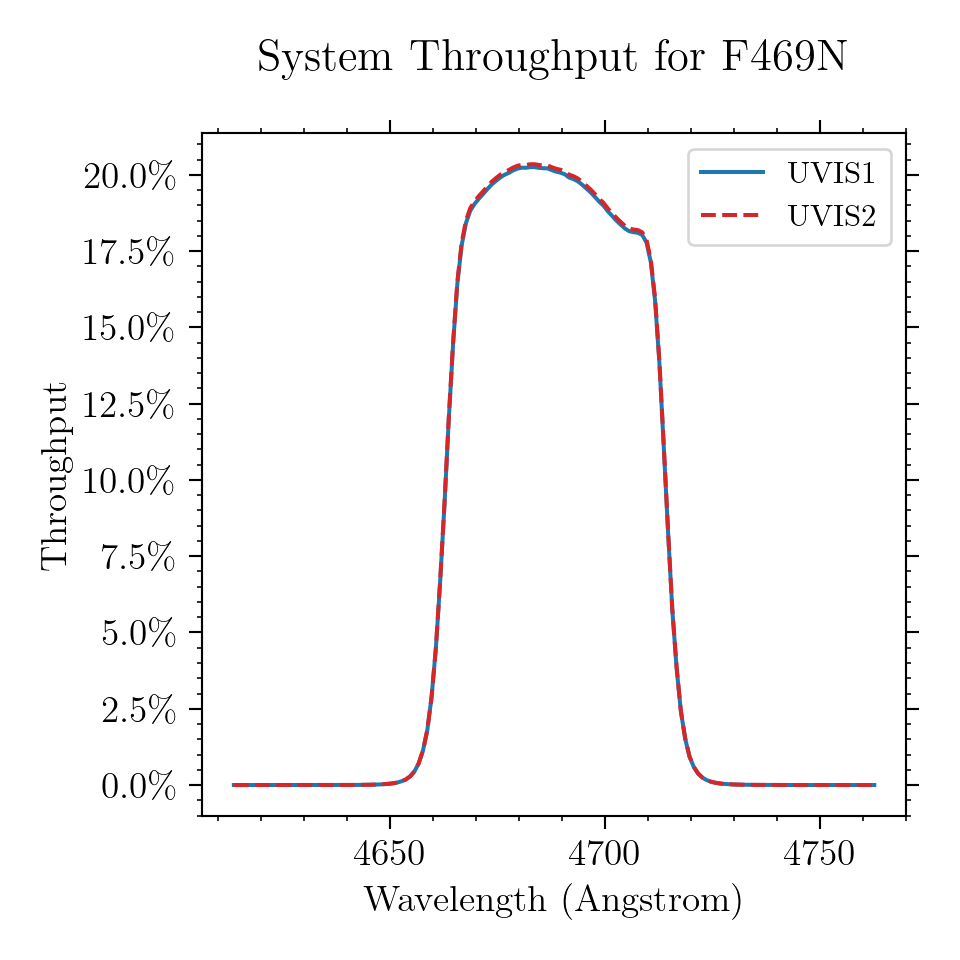

Figure A.49: Integrated system throughput for F469N.

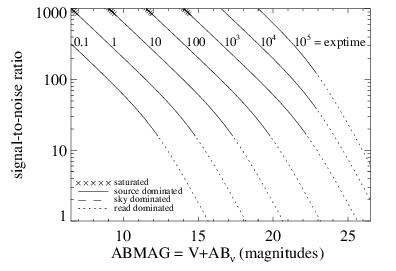

Figure A.50: Point source S/N vs. V+ABν for the F469N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.
Figure A.51: Extended source S/N vs. V+ABν for the F469N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
