UVIS FQ575N
Description
[N II] 5754 filter.

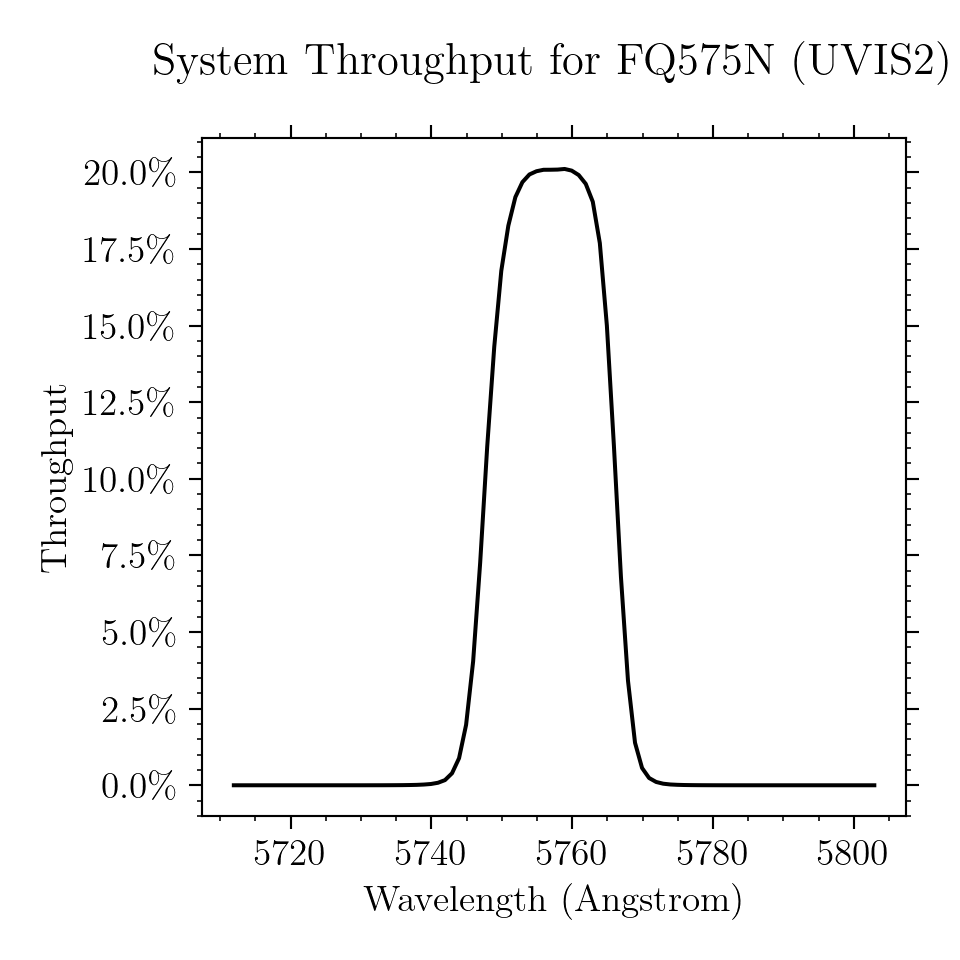

Figure A.154: Integrated system throughput for FQ575N.

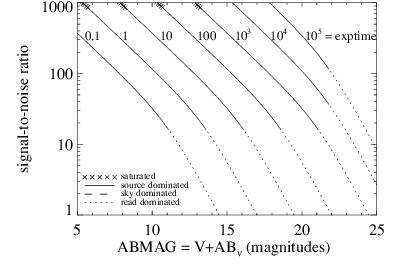

Figure A.155: Point source S/N vs. V+ABν for the FQ575N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

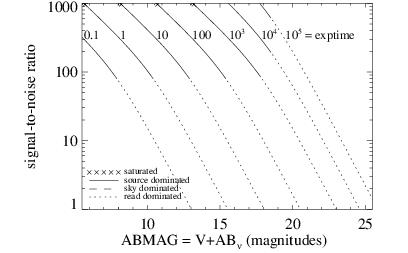

Figure A.156: Extended source S/N vs. V+ABν for the FQ575N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
