UVIS F600LP
Description
Long-pass filter.

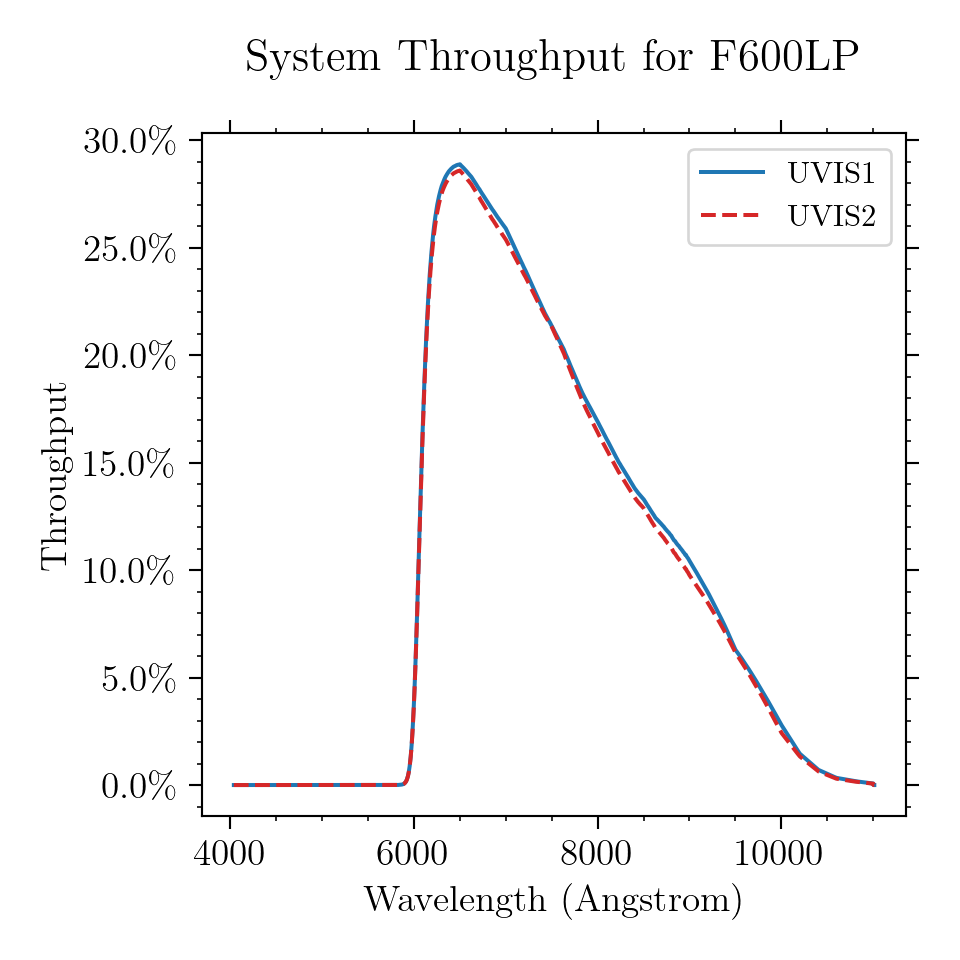

Figure A.70: Integrated system throughput for F600LP.

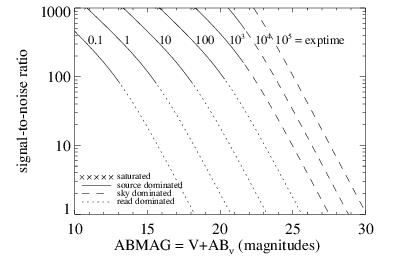

Figure A.71: Point source S/N vs. V+ABν for the F600LP filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.
Figure A.72: Extended source S/N vs. V+ABν for the F600LP filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
