UVIS F336W
Description
U, Strömgren u filter.

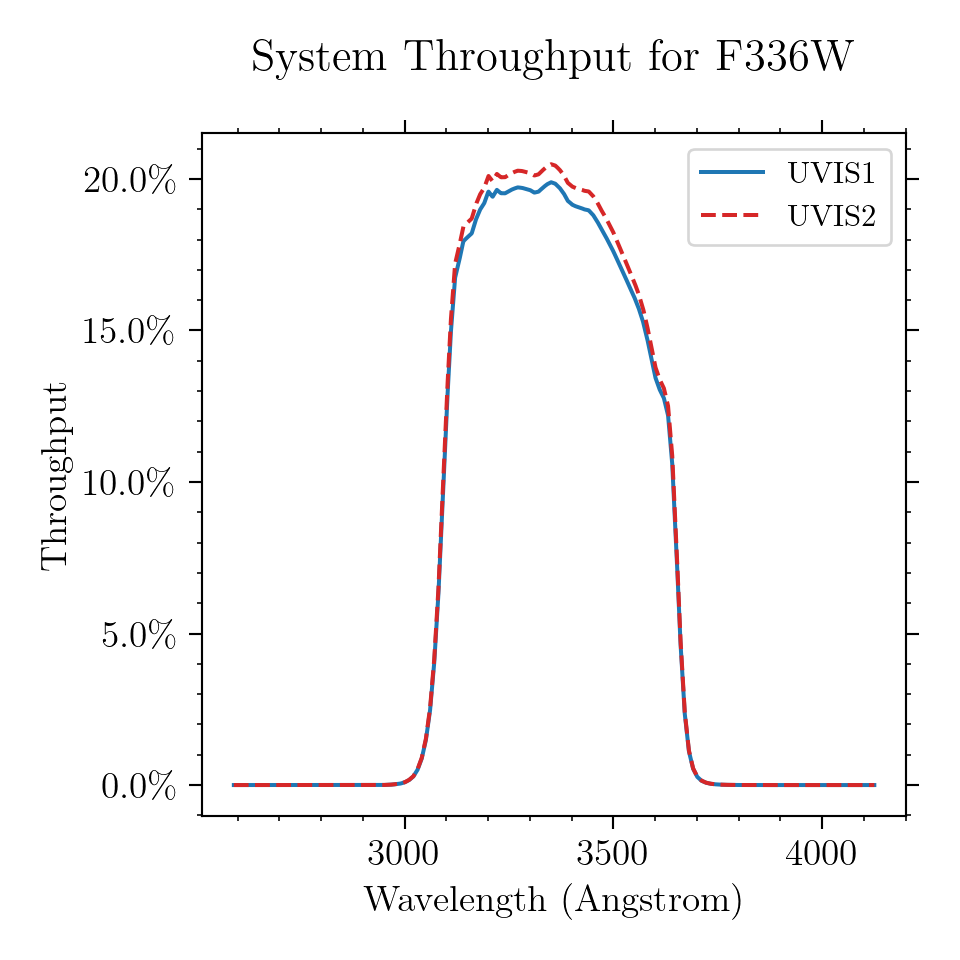

Figure A.19: Integrated system throughput for F336W.

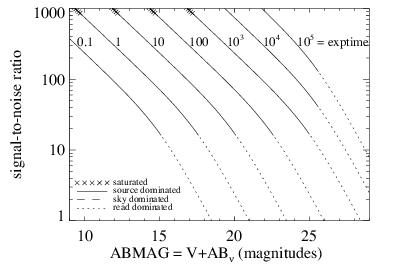

Figure A.20: Point source S/N vs. V+ABν for the F336W filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

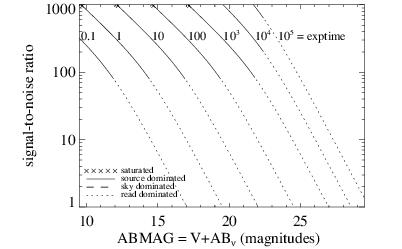

Figure A.21: Extended source S/N vs. V+ABν for the F336W filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
