UVIS FQ387N
Description
[Ne III] 3868 filter.

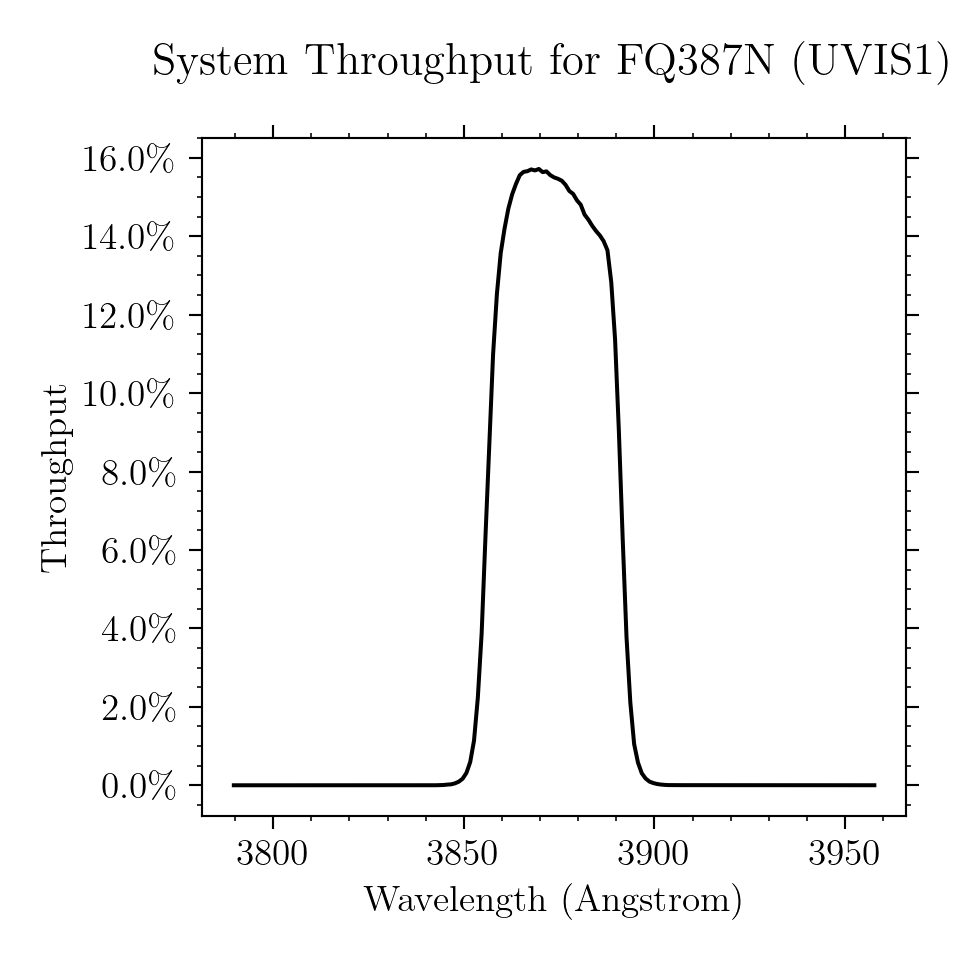

Figure A.136: Integrated system throughput for FQ387N.

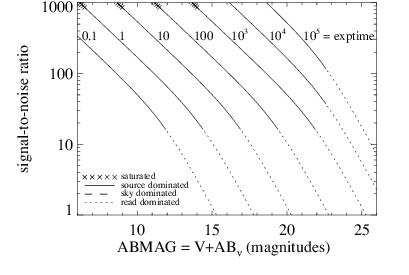

Figure A.137: Point source S/N vs. V+ABν for the FQ387N filter, assuming high sky backgrounds and a 5 × 5 pixel aperture.

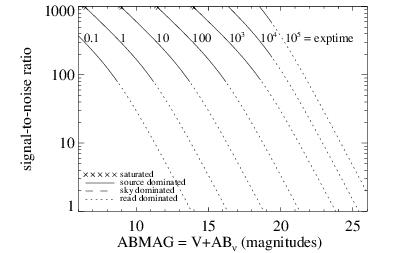

Figure A.138: Extended source S/N vs. V+ABν for the FQ387N filter, assuming high sky backgrounds and a source uniformly filling a 1 arcsec2 aperture.
-
